Hold the assembly to the curing line for curing / grab the assembly from the curing line and put it into the line to let it out

Applicable components: conventional, half sheet and double glass components in length 1640-2500mm & width 950-1400mm
Working beat: 22 seconds
Maximum production capacity: 3,400 pcs / day
Online operator: No
Weight: about 1,780 k g
Rated power rating (KW):6.0KW
Pressure (MPa):0.6-0.8MPa
Gas consumption (L/min):10.7L/min
Interface specification: 12
Noise (dbA): <72db
Overall dimension (length, X, width, X, height): 3050mm 2960mm 2550mm

The equipment is driven by a servo motor, with gear and rack drive and linear rail guide, which has the advantages of accurate operation and smooth operation;

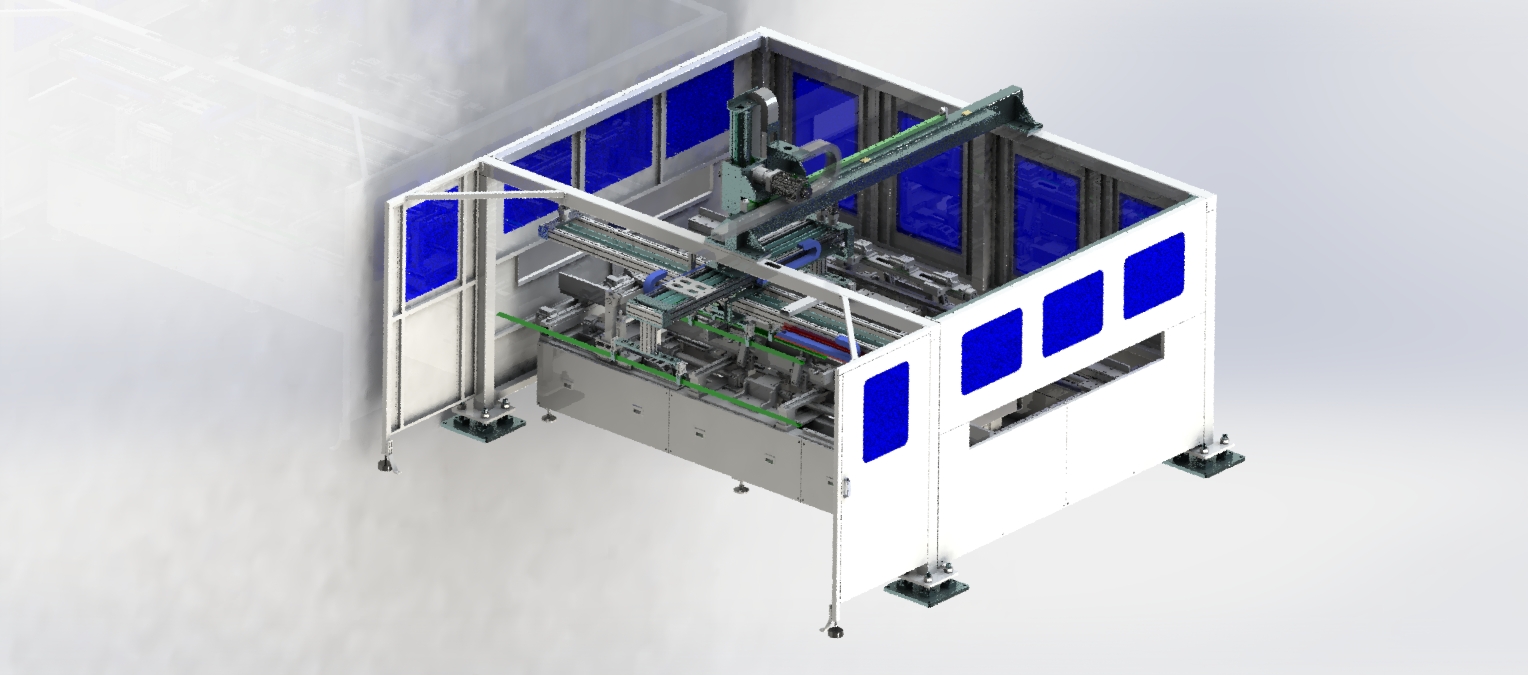

The whole machine is equipped with a safety fence, and has the safety protection function;
The clip frame is firmly and reliable, and the frame is not scratch;
The whole machine is equipped with power off and gas off protection;
The equipment is operated automatically, and the operation process does not require personnel intervention;
The operation and programming interface is simple and easy to use;
